1000 nits de alto módulo táctil luminoso

Min. Orde:1 Piece/Pieces

Envases e entrega

Unidades de venda:

Piece/Pieces

Introdución do produto

1000nits de alto módulo táctil luminoso, de tamaño escalable (de 10,1 "a 27"), módulo táctil brillante e rendible con versatilidade e funcionalidade para aplicacións incrustadas que conforman unha solución única para todas as solicitudes do cliente.

1000NITs Módulo táctil de alta luminosa pode seleccionar clips incorporados, incrustados, Vesa, kit de montaje de parede, soporte de escritorio, soporte plegable, así como unha variedade de tecnoloxías táctiles incluíndo, p-cap, resistivo e IR segundo as túas necesidades.

Features

1. Integrated solution for touch function and LCD display

2. USB touch interface for flexible customer selection

3. Long product life cycle, upgrade or replacement of LCD screen will not cause external dimensional changes

4. High brightness, high contrast, fast response time, multi-color support, wide viewing angle

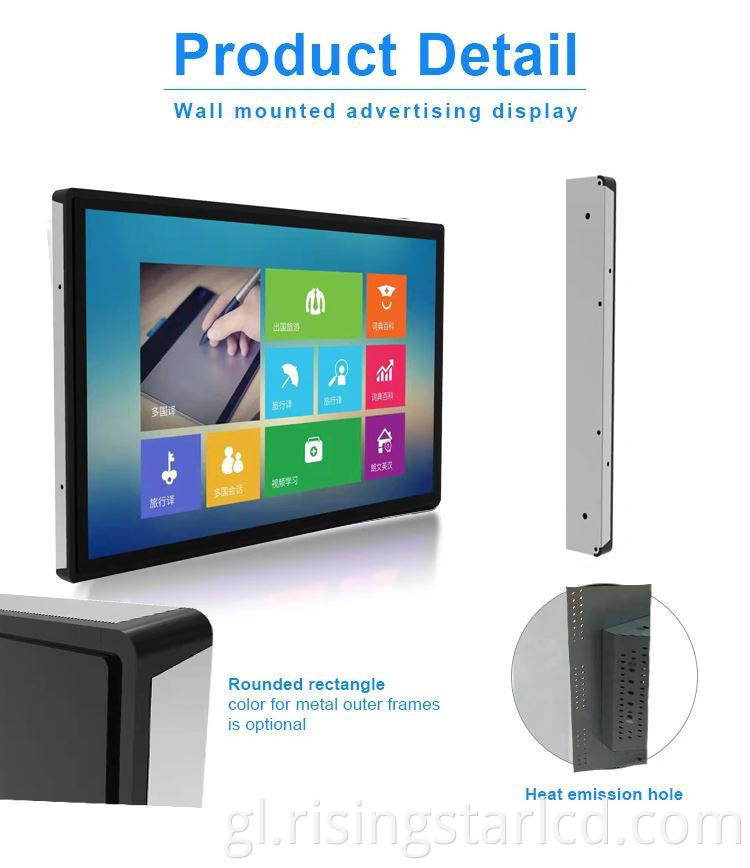

5.A variety of mounting options, including horizontal mounting bracket mounting, vertical mounting bracket mounting, VESA standard mounting, and customer self-designed mounting

6.Capacitive touch for a stable and sensitive touch experience and high-definition visual enjoyment

7.Can adapt to various customization requirements of customers

1000nits touch module

Product specification
LCD panel
Panel size	10.1/13.3/15/15.6/17 /18.5/19/21.5/23.6/27inch
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits (can be customized)
Touch panel
Touchscreen Type	Capacitive Touch (10 points )
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
OSD
Support OS	Windows ,HDMI, Android, ect.
Power Supply
External Power Supply	AC 100 - 240V, 50-60Hz
Working voltage	DC 12-24V
Power consumption	≤35W
Enclosure
Material	Aluminum Alloy
Color	Black, Silver or customized
VESA mounting	75x75mm/100x100mm
Operating Environment
Temperature Range	operating: -10 to 50°C, storage: -20 to 80°C
Relative humidity	operating: -5% to 95%, storage: -5% to 95%
