Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Modelo núm.: G121XGE-L01

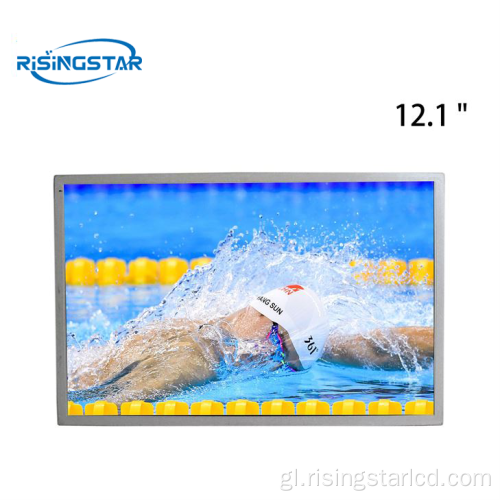

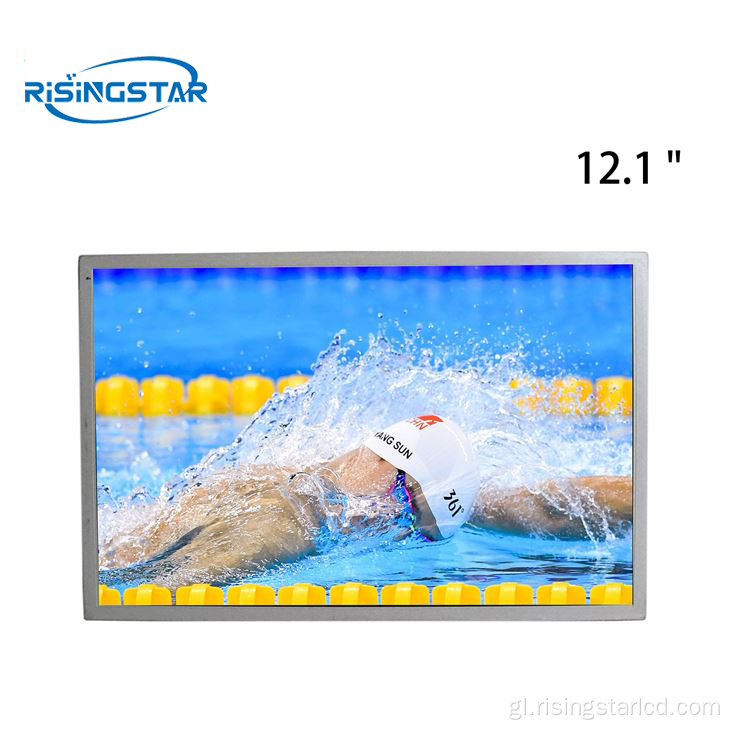

12,1 polgadas Innolux G121XGE-L01 VISIBLE PANEL LCD de alto brillo.
| brand | Innolux | Model name | G121XGE-L01 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 768(RGB)×1024, XGA, 105PPI | Pixel configuration | RGB vertical bar |
| Display Area | 184.32×245.76(H×V)mm | Surface treatment | Mirror (Haze 0%), Hard coating (3H) |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Contrast Ratio | 700:1 (Typ.) [transmission] |
| Viewing Angle | 70/70/80/80 (Typ.)(CR≥10) | Outline dimension | 204×260.5×8.9(H×V×D)mm |
| Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal |
|
|
| work environment | Storage temperature: -40 ~ 85 °C Working temperature: -30 ~ 80 °C |
|
|
Etiquetas quentes: 12.1 "Innolux G121XGE-L01 Módulo LCD TFT, China, fábrica, barato, prezo, personalizado, cotización, ventá orientadora LCD, pantalla de 65 polgadas, pantalla completa en HD, provedor de pantalla LCD, 65 pulgadas 2500nits LCD Visual Pantallas, pantalla exterior de 2000nits , panel LCD, módulo LCD, exhibición de alto brillo.
12.1 "Innolux G121ice-L01 Módulo LCD TFT
12.1 "Módulo LCD TFT Innolux G121X1-L04
Contactar agora
